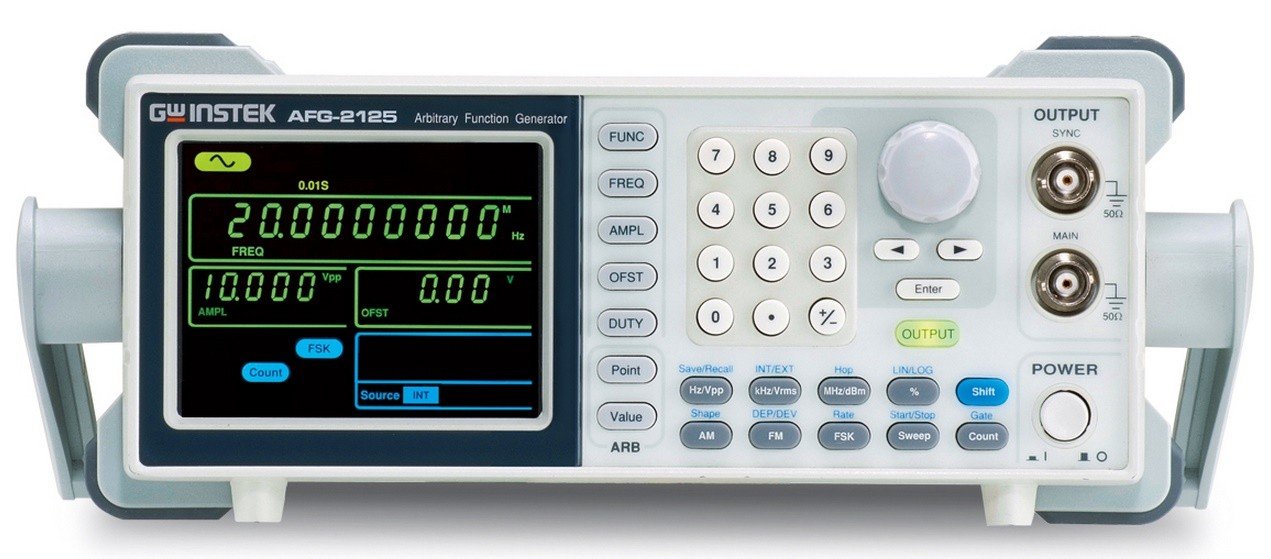

GW INSTEK AFG-2000/2100 Series

Features

* 0.1Hz to 5/12/25 MHz with in 0.1Hz Resolution
* Sine, Square, Triangular, Noise and Arbitrary Waveform
* 20MSa/s Sampling Rate, 10 bit Vertical Resolution and 4k Point Memory for Arbitrary Waveform
* 1% ~ 99% adjustable duty cycle for Square Waveform
* Waveform Parameter Setting Through Numeric Keypad Entry & Knob Selection
* Amplitude, DC Offset and Other Key Setting Information Shown on the 3.5” LCD Screen Simultaneously
* AM/FM/FSK Modulation, Sweep, and Frequency Counter Functions (AFG-2100 only)
* USB Device Interface for Remote Control and Waveform Editing
* PC Arbitrary Waveform Editing Software

Description:

The AFG-2100/2000 Series Arbitrary Function Generator is a DDS (Direct Digital Synthesized) based signal generator designed to accommodate the Educational and Basic Industrial requirements for an accurate and affordable signal source covering the output of Sine, Square (Pulse), Ramp (Triangle), Noise and Arbitrary waveforms. The 20M Sa/s sampling rate, 10 bit vertical resolution and 4k point memory of the AFG-2100/2000 Series provide user with a flexible environment for creating the specific waveform output as needed. The 0.1Hz resolution of Sine, Square and Triangle waveforms and the 1% ~ 99% adjustable duty cycle of Square (Pulse) waveform are the remarkable features to greatly extend its application range in various fields.


The AFG-2100/2000 Series includes 6 models in three frequency bands of 5MHz, 12MHz and 25MHz. Besides the basic features of the whole AFG-2100/2000 Series, AFG-2100 also carries additional features of AM/FM/FSK Modulation, Sweep, and Frequency Counter.

The user friendly interface of AFG-2100/2000 Series allows user to set waveform parameters, including waveform type, frequency, amplitude, DC offset, modulation type, and duty cycle, through keypad entry and/or the knob selection, and display the set parameters on the 3.5” LCD screen. The AFG-2100/2000 Series is equipped with a USB Device interface for remote control and waveform editing through a PC. A waveform editing software is provided to facilitate the waveform creation on the PC. After the waveform editing is done, the user is able to download the waveform data from PC to the AFG-2100/2000 Series for signal output.



Arbitrary Waveform Function
Other than the high accuracy and high stability DDS Function Waveforms-Sine, Square and Triangle, the AFG-2100/2000 Series also provides the feature to generate Arbitrary Waveforms as what user wants. The 20MSa/s sampling rate, 10 bit vertical resolution and 4k point waveform memory allow user to create the needed waveform point by point through keypad entry on the front panel, or to do waveform editing on the PC and download the waveform data to the AFG-2100/2000 Series, for arbitrary waveform output. A PC software is available to facilitate the editing of complicated and irregular waveforms, which fulfill the requirements of various applications in the real life scenarios.

Adjustable Duty Cycle
The adjustable duty cycle of square waveform is a commonly used feature of a Function Generator. For a conventional Function Generator, however, the adjustable duty cycle mostly falls in a limited 20% ~ 80% range, which may not fit the demands of specific applications. The AFG-2100/2000 Series is able to provide a 1% ~ 99% variable duty cycle for its square waveform output. This feature allows the AFG-2100/2000 Series to be used as a Pulse Generator to create pulse waveform simulating a spike signal or a transient signal in most of the generic applications.




Parameter Setting
The keypad entry and/or knob selection for waveform parameter setting is a unique feature of the AFG-2100/2000 Series. The conventional analog knob, which is commonly adopted in the AFG design, is not accurate enough for precision setting of waveform parameters, and may generate noise to interfere the system operation. The keypad entry design of AFG-2100/2000 Series improves the setting uncertainty of conventional Function Generator and therefore significantly increases the accuracy of its waveform output. Besides keypad entry, the AFG-2100/2000 Series also offers the knob selection convenience with a digital knob design, which allows user to see the parameter value change in detail on the 3.5” LCD screen when the adjustment is in progress.

Waveform Amplitude & DC Offset
Besides output waveform frequency, the AFG-2100/2000 Series is able to show output waveform amplitude, DC offset and other key setting information on the LCD screen simultaneously. This provides the convenience for user to know what signal is being sent out at the output terminal without the need to check the waveform through an oscilloscope. Further more, the waveform amplitude value can be shown in one of the three units, including Vpp, Vrms and dBm, depending on user’s selection. This saves time for tedious math conversion among various units of waveform amplitude.

AM/FM/FSK Modulation, Sweep & Frequency Counter
All AFG-2100 models are equipped with additional AM/FM/FSK Modulation, Sweep & Frequency Counter functions. The AM/FM modulated signal provides a means for basic modulation circuit tests and experiments. Whereas, the FSK modulated signal is offered as a convenient source for the performance evaluation of digital modulation circuits. The Sweep function, with accurate frequency sweep range & sweep time, adequately fits a lot of basic applications in the market, such as sweep-tone test of the speaker in a 20Hz ~ 20kHz sweep range. The built-in frequency counter of AFG-2100 is able to measure the frequency of an external signal up to 150MHz. This add-on value saves for user an additional cost of purchasing a standalone frequency counter.

USB Interface
The AFG-2100/2000 Series provides a USB Device Interface, which allows the programming of remote control or ATE of the product. An arbitrary waveform editing software is available to facilitate the waveform creation task. After the waveform editing is completed on the PC, the waveform data can be downloaded through USB Interface to the AFG-2100/200 for arbitrary waveform output.

Arbitrary Waveform Editing PC Software
The arbitrary waveform editing software contains not only waveform drawing tools but also a wide variety of waveform editing functions. The most commonly used waveforms, including Rayleigh, Gaussian, Normal Noise, Pseudo Ternary, Bipolar AMI, Manchester, Differential Manchester, RS-232, and NRZ etc., are available in the library for user to tailor specific waveforms as needed. Besides, this software can import CSV format file as waveform data which is created by the other tools. The editing software will stretch AFG-2100/2000 to more applications.

Specification:

Models
AFG-2000 series
AFG-2100 Series
2005
2012
2025
2105
2112
2125
Waveforms


Sine, Square, Ramp, Noise, Arbitrary Waveform
Arbitrary Waveform

Sample Rate
20 MSa/s
Repetition Rate
10MHz
Waveform Length
4k points
Amplitude Resolution
10 bit
Non-Volatile Memory
4k points
Frequency Characteristics
Range
Sine, Square
0.1Hz
|
5MHz
0.1Hz
|
12MHz
0.1Hz
|
25MHz
0.1Hz
|
5MHz
0.1Hz
|
12MHz
0.1Hz
|
25MHz
Ramp
0.1Hz ~ 1MHz
Resolution
Sine, Square, Ramp
0.1Hz
Accuracy
Stability
±20 ppm
Aging
±1 ppm, per 1 year
Tolerance
 1 mHz
Output Characteristics
Amplitude
Range
1 mVpp to 10 Vpp( into 50Ω), 0.1Hz20MHz
2 mVpp to 20 Vpp(open-circuit) , 0.1Hz
20MHz
1 mVpp to 5 Vpp( into 50Ω), 20MHz25MHz
2 mVpp to 10 Vpp(open-circuit), 20MHz25MHz
Accuracy
± 2% of setting ±1 mVpp (at 1 kHz,>10 mVpp)
Resolution
1 mV or 3 digits
Flatness
± 1%  (0.1dB)  100kHz
± 3% (0.3 dB)
5MHz
± 4% (0.4 dB)   12MHz
± 20% (2 dB)
20MHz
± 5% (0.4 dB)   25MHz
(sine wave relative to 1 kHz)
Units
Vpp, Vrms, dBm
Offset
Range
±5 Vpk ac +dc (into 50Ω)
±10Vpk ac +dc (Open circuit)
±2.5 Vpk ac +dc (into 50Ω) for 20MHz-25MHz
±5Vpk ac +dc (Open circuit) for 20MHz-25MHz
Accuracy
2% of setting + 5 mV+ 0.5% of amplitude
Output
Impedance
50Ω typical (fixed) > 300kΩ (output disabled)
Protection (main output)
Short-circuit protected by overload relay automatically disables output
SYNC Output


Level
TTL-compatible into>1kΩ
Impedance
50Ω nominal
Rise or Fall Time
25ns
Sine wave Characteristics Harmonic Distortion
–55 dBc DC ~ 200kHz, Ampl > 0.1Vpp
–50 dBc 200kHz ~ 1MHz, Ampl > 0.1Vpp
–35 dBc 1MHz ~ 5MHz, Ampl > 0.1Vpp
–30 dBc 5MHz ~ 25MHz, Ampl > 0.1Vpp
Square wave
Characteristics
Rise/Fall Time
25ns at maximum output (into 50Ωload)
Overshoot < 5%
Asymmetry 1% of period+1 ns
Variable Duty Cycle
1.0% to 99.0%   100kHz
20.0% to 80.0%
 5 MHz
40.0% to 60.0%
10MHz                                                                                                  50%            25MHz
Ramp Characteristics Linearity
 0.1% of peak output
Variable Symmetry 0% to 100%(0.1% Resolution)
AM Modulation
  Carrier Waveforms
Sine, Square, Triangle
Modulating Waveforms
Sine, Square, Triangle
Modulating Frequency
2 mHz to 20 kHz (Int)
DC to 20KHz (Ext)
Depth
0% to 120.0%
Source
Internal / External
FM Modulation
  Carrier Waveforms
Sine, Square, Triangle
Modulating Waveforms
Sine, Square, Triangle
Modulating Frequency
2 mHz to 20 kHz (Int)
DC to 20KHz (Ext)
Deviation
DC to Max Frequency
Source
Internal / External
SWEEP
  Waveforms
Sine, Square, Triangle
Type
Linear or Logarithmic
Start F / Stop F
0.1Hz to Max Frequency
Sweep Time
1 ms to 500 s
Source
Internal / External
FSK
  Carrier Waveforms
Sine, Square, Triangle
Modulating Waveforms
50% duty cycle square
Modulation Rate
2mHz to 100kHz(INT)
DC to 100kHz(Ext)
Frequency Range
0.1Hz to Max Frequency
Source
Internal / External
Frequency Counter
  Range
5Hz to 150MHz
Accuracy
Time Base accuracy±1count
Time base
±20ppm (23℃ ± 5℃) after 30 minutes warm up
Resolution
100nHz for 1Hz,
0.1Hz for 100MHz.
Input Impedance
1kΩ/1pf
Sensitivity
35mVrms ~ 30Vms (5Hz to 150MHz)
System Characteristics
  Store/Recall
10 Groups of Setting Memories
Interface
USB(Device)
Display
LCD
General Specifications
  Power Source
AC100240V ,  5060Hz
Power Consumption
25 VA
Operating Environment
Temperature to satisfy the specification :  18 ~ 28C
 Operating temperature :  0 ~ 40
C
Relative Humidity:  80%, 0 ~ 40°C
 70%, 35 ~ 40°C
Installation category CAT
Operating Altitude
2000 meters
Storage Temperature
-10 ~ 70C, Humidity: 70%
Dimensions (WxHxD)
266(W)×107(H)×293(D) mm
Weight
Approx. 2.5 kg
Accessories CD (user manual + software) ×1 , Quick Start Guide x1, Power cord×1
GTL-101× 1
GTL-101× 2

Accessories :

User manual CD x 1
Quick Start Guide x 1
Power Cord x 1
GTL-110 test lead x 1 (AFG-2000 series)
GTL-110 test lead x 2 (AFG-2100 series)

Ordering Information :

AFG-2005, 5MHz Arbitrary Function Generator
AFG-2105, 5MHz Arbitrary Function Generator with Counter, Sweep, AM, FM and FSK Modulation
AFG-2012, 12MHz Arbitrary Function Generator
AFG-2112, 12MHz Arbitrary Function Generator with Counter, Sweep, AM, FM and FSK Modulation
AFG-2025, 25MHz Arbitrary Function Generator
AFG-2125, 25MHz Arbitrary Function Generator with Counter, Sweep, AM, FM and FSK Modulation
