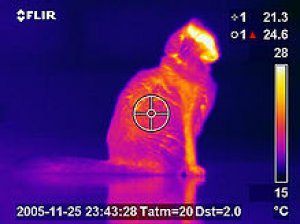

Infrared thermography (IRT), thermal imaging, and thermal video are examples of infraredimaging science. Thermographic cameras detectradiation in the infrared range of the electromagnetic spectrum (roughly 9,000–14,000 nanometers or 9–14 µm) and produce images of that radiation, called thermograms. Since infrared radiation is emitted by all objects above absolute zero according to the black bodyradiation law, thermography makes it possible to see one's environment with or without visible illumination. The amount of radiation emitted by an object increases with temperature; therefore, thermography allows one to see variations in temperature. When viewed through a thermal imaging camera, warm objects stand out well against cooler backgrounds; humans and other warm-blooded animals become easily visible against the environment, day or night. As a result, thermography is particularly useful to military and other users of surveillance cameras.
Thermal Imaging Camera140 x 140 Resolution, 29° × 29° Field of View
Compact Infrared Thermal Imaging Camera100 x 100 resolution, 21° × 21° Field of View
Manual focus, 4x continuous zoom Built-in laser pointer, 3.5" Touch-Screen LCD display Built-in 3.1 Megapixel visible light digital camera with bright LED lamp for poorly lit environments Functions include Scalable Picture-In-Picture, Thermal Fusion, Voice/Text Annotation, Laser Pointer Marker, IR Window Correction, Instant Report Measurement modes: up to 3 movable Spots, up to 3 Areas (Min/Max/Average), Auto Hot/Cold spot marker, Isotherm (Above/Below), Delta T METERLiNK Bluetooth Wireless communication With an image quality of up to 320 x 240 pixels, the FLIR E-Series is ideal for predictive maintenance and planned inspection of electrical and mechanical systems to ensure they operate at maximum efficiency and safety with minimal energy consumption. Superior Thermal Imaging – Up to 76,800 pixels (320 × 240) IR resolution coupled with 2% accuracy, <0.05˚C thermal sensitivity, 4x digital zoom, and 60Hz refresh rate for unbeatable detail and the highest level of point-and-shoot image quality available. 3MP Digital Camera – Use the built-in LED lamp and visual camera with 3 megapixel resolution to capture crisply detailed visible light images even in...
FLI0011- I3 UPGRADED LATEST THERMAL IMAGER WITH 'TRUE WARRANTY' - NEW WITH 140X140,ISOTHERM,MAX/MIN AREA
Compact Thermal Camera for Building Diagnostics and Predictive Maintenance Excellent Screen Size and Quality – High-resolution color 2.8” LCD display helps find problems fast Accurate Results – thermal accuracy (+/-2%) and broad measurement range (-20°C to 250°C) give you results you can count on. Rugged, Compact Design – Easy to use, one-handed operation with a focus-free lens; tough enough to withstand a two meter drop and stow with the rest of your tools. Fully Radiometric Images – Store up to 5,000 JPEG image files with all temperature measurements right in the camera for future analysis, downloads, and custom reports. Plenty of Extras – Includes PC reporting software, plenty of memory with a 2 GB microSD card, and comes complete with a hard carrying case. Unmatched Warranty – Double Diamond warranty covers whole camera for 2 years, the battery for 5 years, and the detector for 10 years.
Infrared thermal imaging temperature \ Security \ Quick \ Temperature Warning System Rapid detection of human body temperature passing through. Stopping is not necessary. Connection monitoring functions : Instantly synchronized display of the thermal imager like the picture on the PC screen . When the thermal imager to detect more than a high temperature : with two different warning sound , you can set the body fever warning sound and warning sound outside fever over the body ( such as hot coffee and hot food ... etc) . Flashing red warning , digital temperature display characters , a warning sound from the PC speaker . Thermal imaging screen automatically according to date for the file name is automatically saved every minute JPG files.
BASIC SYSTEM THERMO CAMERA FOR HUMAN BODY TEMPERATURE DETECTION Measure: *Easy to use. Good Accuracy. 1 year warranty. For advanced model, see CHC102A. CHC102B epidemic rapid temperature detection system Infrared thermal imaging temperature \ Security \ quick \ temperature warning Rapid detection of people traveling , do not have to stop More than a few meters distance temperature measurement Avoid close infection
Say goodbye to hot work permits and hello to hassle free infrared thermography with the new TC7000Intrinsically Safe Thermal Imager from CorDEX Instruments! The TC7000 intrinsically safe thermal imaging camera is a long awaited product by professionals working in hazardous (explosive) areas. Until now the only way to carry out thermographic inspections in these areas was with a non-certified camera and hot work permit – a risky practice frowned on by safety inspectors. TC7000 is designed for use in the explosive gas areas found in the petrochemical industry, the explosive dust areas found in sugar production and grain storage/handling and the below ground hazardous areas of the mining industry. Data capture is accurate and simple with the RFID tag reader built in to TC7000 that enables thermal images and voice comments to be linked to a location. This temperature, location and time data builds into a powerful trending and predictive tool when downloaded to CorDEX CONNECT™ software. TC7000 Key Features The TC7000 is ATEX/IECEx Certified for Zone 1, 2, 21, 22 & M2 explosive areas No waiting for hot work permits with its intrinsically safe design. High...
FLIR® Ex-Series Infrared Camera Specifications Model NumberFLIR E4FLIR E5FLIR E6FLIR E8 Imaging and Optical Data IR Resolution 80 × 60 120 × 90 160 × 120 320 × 240 Thermal Image Sample MSX Resolution 320 × 240 Thermal Sensitivity <0.15°C <0.10°C <0.06°C Field of View 45° × 34° Focus Focus Free Detector Uncooled Microbolometer Screen 3.0 in. 320 × 240 color LCD Frame Rate 9 Hz Analysis Image Modes IR image, visual image, MSX, thumbnail gallery IR image, visual image, MSX, picture-in-picture, thumbnail gallery Multi Spectral Dynamic Imaging (MSX) IR image with enhanced detail presentation Picture-in-Picture N/A IR area on visual image Temperature Range –4° F to 482°F (–20° to 250°C) Accuracy ±2% or 2°C Measurement Modes Spot (center) mode 2 modes: 1 Spot (center); 1 Area Box (Min/Max) 3 modes: 1 Spot (center); 1 Area Box (Min/Max); Isotherm (above/below) Alarm N/A N/A Blue below or red above set temperature Emissivity...
