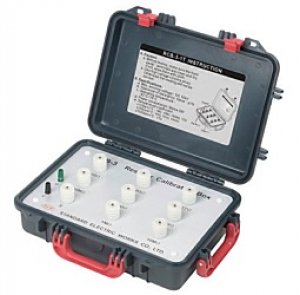

● The RCB-3-1T is used to verify and proof any High Voltage
Insulation Testers. It can be utilized to calibrate all High Voltage
Insulation Testers very accurately Analogs or Digitals.
● Some institutions and large industries requested their own calibrator
too, therefore, SEW started manufacturing the RCB for special
customers.
SPECIFICATIONS |
Resistance ranges (Ω) |
: |
1M. 10M. 100M. 1G. |
|
|
5G. 10G. 100G. 1T |
Resistance tolerances |
: |
±1%(F) |
Temperature coefficient |
: |
± 25ppm/°C : 1MΩ. 10MΩ. 100MΩ. |
|
|
± 100ppm/°C : 1GΩ. 5GΩ |
|
|
± 200ppm/°C : 10GΩ.100GΩ |
|
|
± 1000ppm/°C : 1TΩ |
Max. working voltage |
: |
DC 10kV |
Operating temperature |
: |
-30°C~75°C |
Power coefficient |
: |
Below 3W |
Connecting erminals |
: |
Binding Post : Resistance circuit |
|
|
and guard |
Dimensions |
: |
430(L) × 324(W) × 127(D)mm |
Weight (battery included) |
: |
Approx. 4140g |
|
