Features:
10MHz Single Channel
TV Sync. Mode
High Sensitivity 5mV/div
Easy to Operate
Low Cost, High Performance
Designed for Education,Student, Hobbyist and Maintenance user
Description:

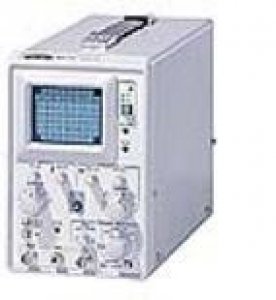

10MHz Triggering Oscilloscope
The GOS-310, 10MHz analog oscilloscope is designed for education, hobby and maintenance use. Standard trigger modes include auto, norm, ext and TV sync. and are applicable in various market fields. High 5mV/div sensitivity extends the measurement range and increases the test accuracy. 10MHz bandwidth, single channel, 4.6kg light weight and compact size design make the GOS-310 best choice for affordable yet high performance oscilloscope.
Specification:
CRT |
|
Diaplay Area | 75mm round screen CRT, 8 x 10 div (6mm/div) |
Accelerating Potential | Approx. 1.2kV |
VERTICAL SYSTEM |
|
Sensitivity | 5mV ~ 5V in 4 decade steps |
Bandwidth | DC ~ 10MHz |
Accuracy | Within ±3% (at line Voltage ± 5%) |
Input Impedance | Approx. 1MΩ // 35pF |
Max. Input | 600Vpp or 300Vpk (DC+AC peak), ≦ 1kHz |
HORIZONTAL SYSTEM |
|
Sweep Rate |
0.1μs ~ 10ms in 6 decade steps |
Accuracy | Within ±5% (at line Voltage±5%) |
TRIGGER |
|
Trigger Mode | AUTO, NORM, EXT, TV |
Trigger Source | INT, EXT |
EXT. | Trigger Max. Input voltage: 600Vpp or 300Vpk (DC+AC peak) |
Input Impedance | Approx. 1MΩ // 35pF |
X-Y OPERATION |
|
Freq. Response | DC ~ 500kHz (-3dB) Sensitivity: approx. 0.1V/div |
Input Impedance | Approx. 1MΩ // 35pF |
Max. Input Voltage | 600Vpp or 300Vpk (DC+AC peak) |
Phase Error | 3° or less at 10kHz |
CALIBRATOR |
|
1kHz±5% Square wave, 0.25Vpp±3% | |
POWER SOURCE | |
AC 115/ 220/ 230V±10%, 50/60Hz | |
DIMENSIONS & WEIGHT | |
132(W) x 210(H) x 298(D)mm; Approx. 4.6kg |
Accessories:
User manual x 1
Power cord x 1
Test Lead GTL-101 x 1
Optional Accessories
GTL-110 Test lead, BNC-BNC heads
Ordering Information:
GOS-310 10MHz Triggering Oscilloscope
