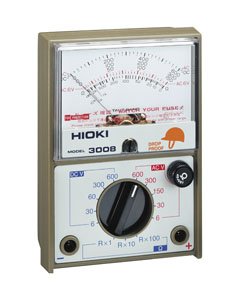

Hioki Multi Tester 3008

Analog Voltage and Resistance Tester For Industrial Applications, Incorporating a High-Powered Fuse to Protect up to 50kA

The 3008 is an analog voltage and resistance meter that includes a high-power fuse to protect up to 50kA for industrial applications.

Not CE Marked

Supply current limiting resistance of 10 Ω restricts short circuit current
• High-power fuse protects up to 50,000 A
• Drop proof design withstands dropping onto a concrete floor from a height of 1 meter

■ Basic specifications (Accuracy guaranteed for 1 year)

DC Voltage range 6/30/60/300/600V (20 kΩ/V)
Accuracy: ±2.5 % f.s.
AC Voltage range 6/30/150/300/600 V (10 kΩ/V)
Accuracy: ±2.5 % f.s. , Average rectifier effective value
Resistance range 0 to 10 kΩ (center scale 100 Ω), R × 1, R × 10, R × 100
Accuracy: ±3 % of scale length
Power supply For resistance measurement range, R6P (AA) × 2 batteries
Safety considerations Circuit: Fuse-protected, internal circuit protection using the 10Ω resistance
Meter: Diode-protected
Dimensions and mass 94 mm (3.70 in) W × 134 mm (5.28 in) H × 56 mm (2.20 in) D, 350 g (12.3 oz)
Accessories Test Lead 9060 ×1, Spare fuse ×1, R6P (AA) manganese battery ×2, Instruction manual ×1, Carrying case ×1
